Excellent Value Deal: Includes a Zebra Lux Line Marking Machine & 40L of Grass Line Marking Paint. Everything you need in one package to line mark professional standard pitches & courts on grass surfaces.
Professional Sports Pitch Line Marking Paint: Bright, colourful and durable lines on grass surfaces. Available in a range of colours.
Made In The UK: High quality machine manufactured by experts in line marking.
Push Button Control: Allows for easy operation of the spray, with the simple press of a button.
High Pressure Spray System: Consistent paint delivery and excellent coverage over the grass surface.
Integrated Solenoid: Stops the paint spray instantly when the button is released, meaning no drips.
Paint Recirculation System: Keeps the paint at the ideal consistency for spraying.
Battery Powered: Line mark for hours on a single charge.
Adjustable Round Line Marking Discs: For crisp and accurate line edges on grass surfaces. Can be adjusted to set the line width, up to 6".

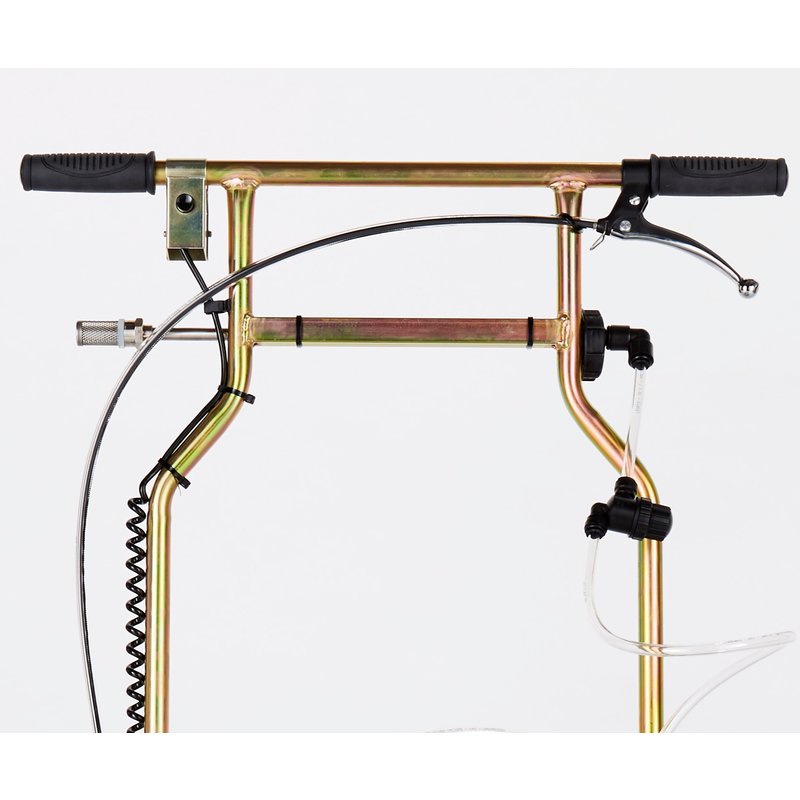

Disc Raising Handle: For easy repositioning at the end of a line.
Front Mounted Spray: Feels like a traditional, robust and solid line marker and helps with accuracy of lines.
Large Air Filled Tyres: For sturdy and reliable operation, they make it easy to stay on track.
Paint Container Holding Tray: Allows a tub of Zebra line marking paint to be placed securely on to the machine. The pump probes are inserted into the tub and take the paint straight out of the container, meaning no diluting, mixing or pouring of paint, and much less mess than traditional machines.

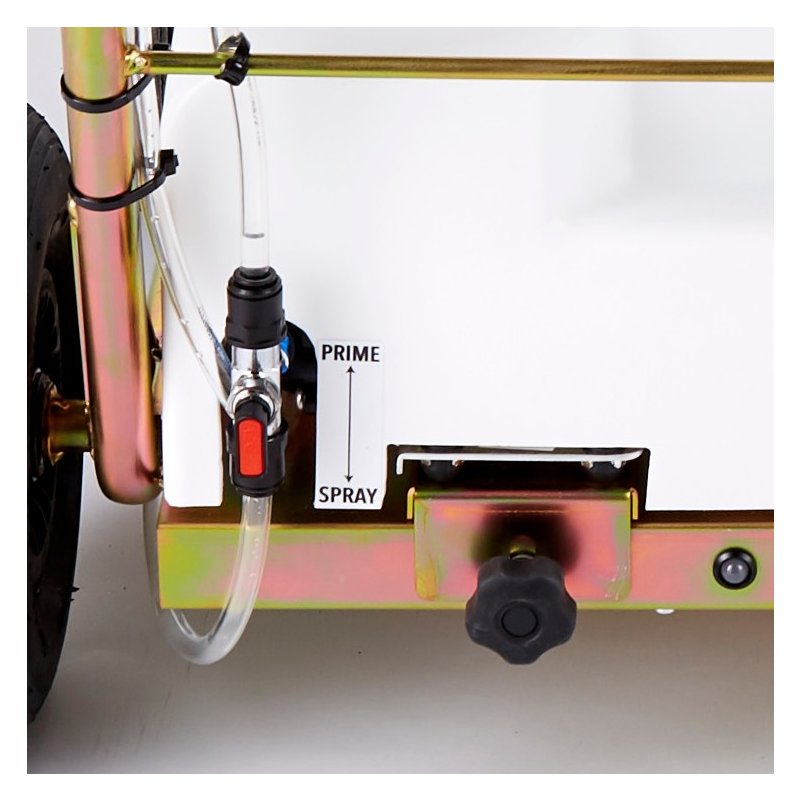

Pump Priming Switch: Allows the system to be primed for use quickly and easily at the start of the job. It also allows the machine to be flushed through and cleaned at the end of the job.
Selection of Nozzles Included: Control the paint flow rate & complete different types of line marking jobs, from initial marking to overmarking - providing great lines whilst saving paint and money.
1L Flush Thru Solution Included: Allows the system, nozzles and filters to be flushed through and cleaned after use to prevent blockages. Extra 10L tubs are available to purchase separately.
Accessories Available: A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. A hard surface line marking conversion kit is also available, which includes a side arm and square line marking discs. The side arm allows the spray to be mounted on the side of the machine, so you can get right up to kerbs and walls when line marking on hard surfaces. The square discs provide crisp and accurate line edges on hard surfaces. A running track line marking boom can be attached to this machine. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.

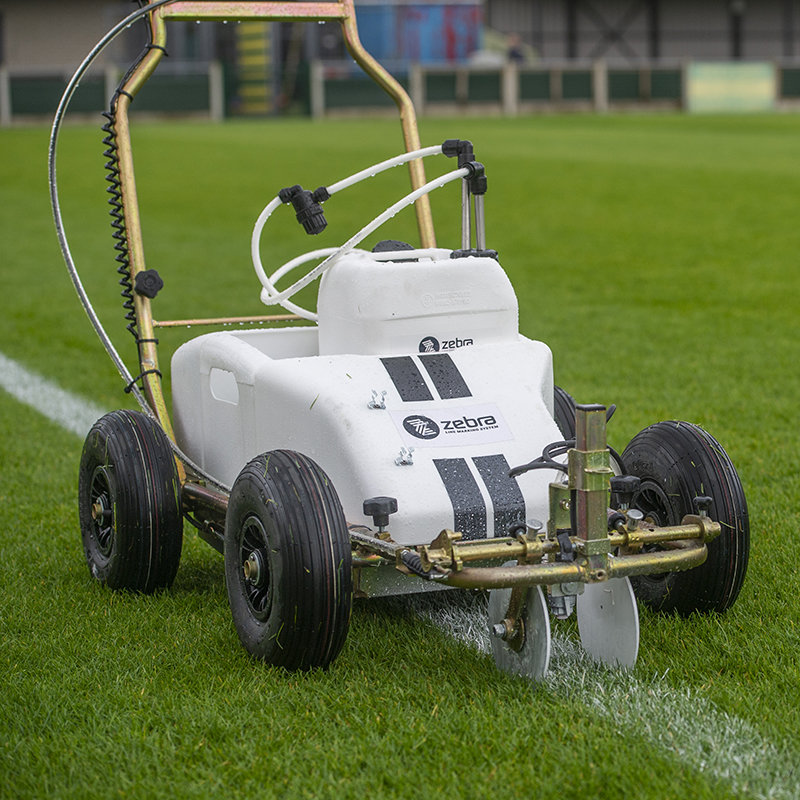

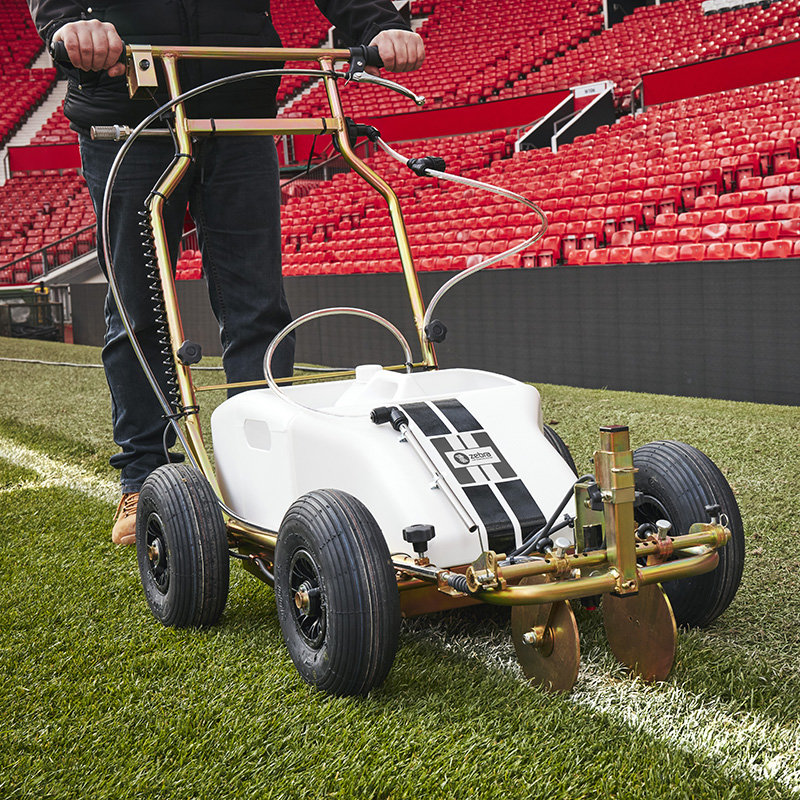

The Zebra Lux Grass Pitch Line Marking Bundle includes a Zebra Lux line marking machine along with 40 litres of Zebra Grass Line Marking Paint together in a great value deal.

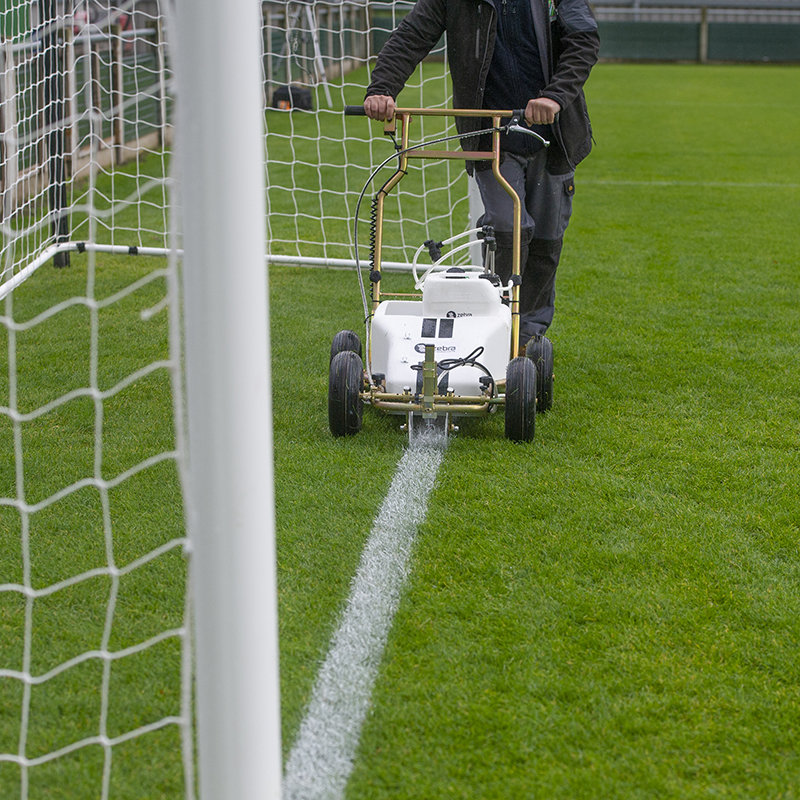

This professional line marker and pitch marking paint can be used by professional sports clubs, leisure centres, schools and amateur sports clubs, to mark out football pitches, rugby pitches, tennis courts and more on grass surfaces.

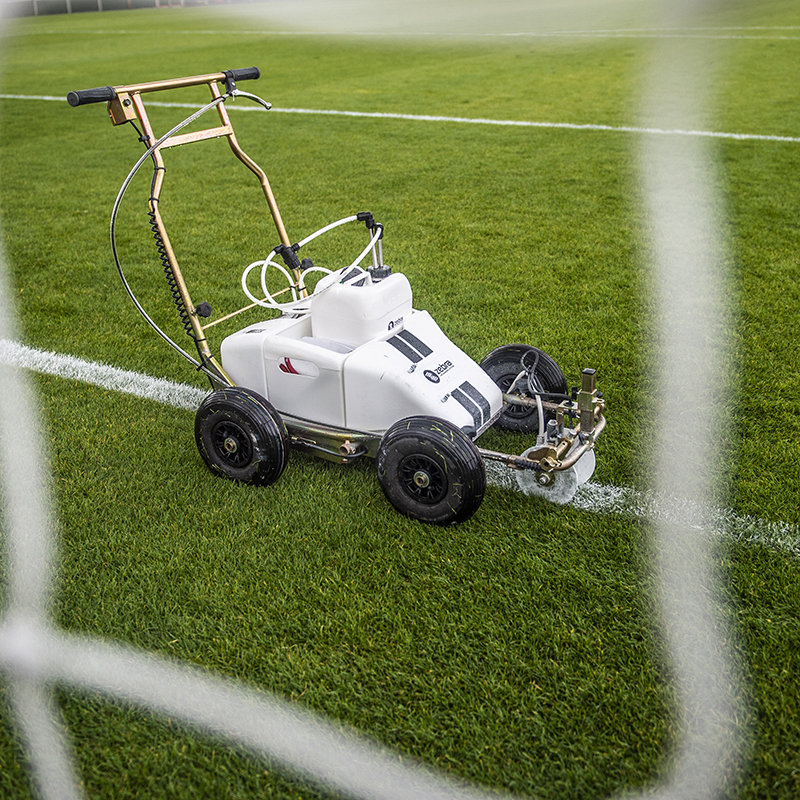

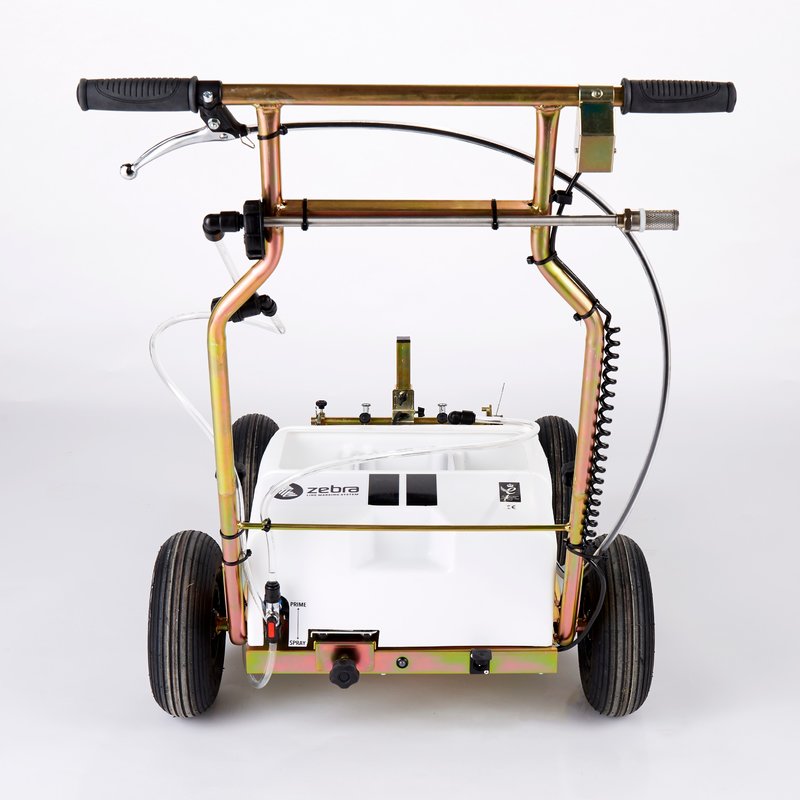

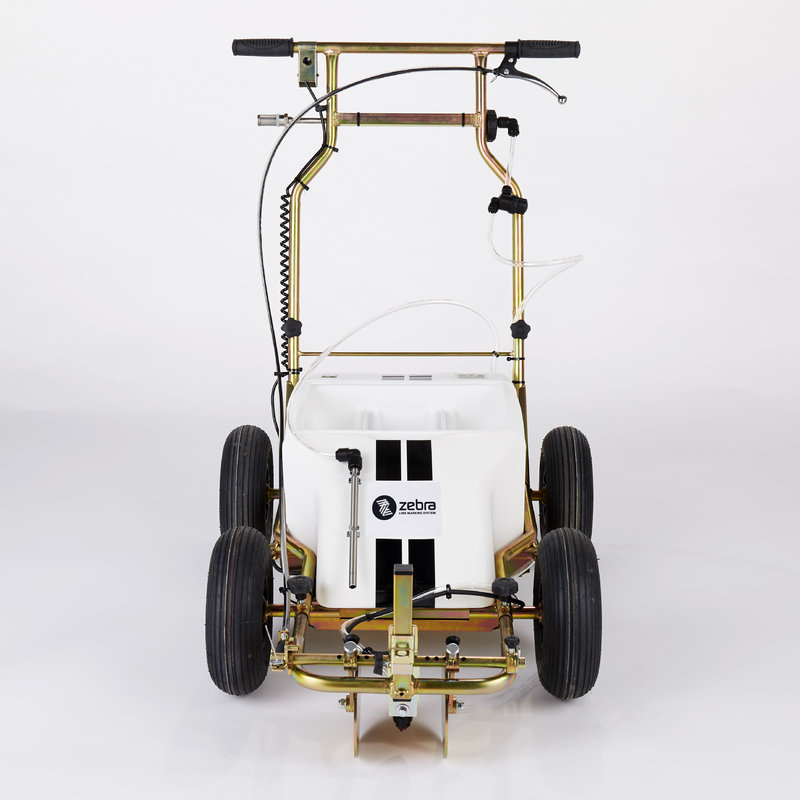

The Zebra Lux is the ultimate spray line marker. It is a solid and robust machine manufactured in the UK, it has a range of great features, offers professional results, and it is easy to use.
It features a high-pressure spray system, powered by a rechargeable battery. A single charge offers hours of line marking, so you can complete multiple pitch markings without having to stop.
The spray is operated with the simple push of a button. The pump takes paint directly from the paint container, using probes inserted into the tub, and sprays it evenly and consistently on to the ground. It provides consistent coverage over the surface, for rich, highly visible and long-lasting lines. The solenoid integrated into the system stops the paint flow dead as soon as the button is released, meaning no drips.
This line marking machine has two paint probes which insert into the Zebra line marking paint container, which connect to the pump. One probe carries the paint to the spray nozzle while the other probe recirculates paint back into the container. This recirculation system ensures that the paint is always well mixed, so it remains at an ideal consistency for spraying.

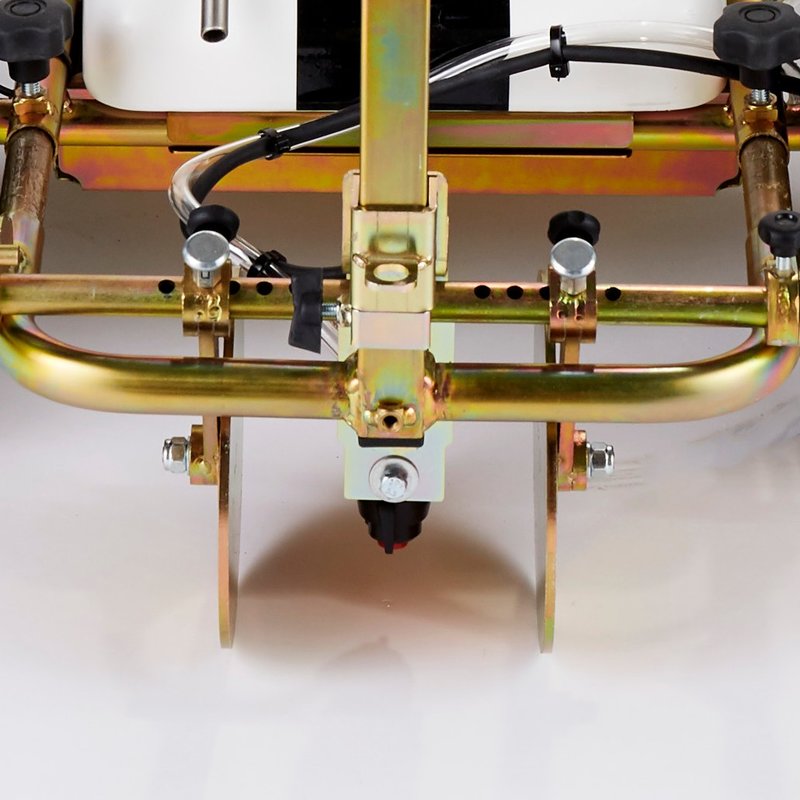

The round discs which surround the spray nozzle ensure a crisp and precise finish to the lines. These discs can be adjusted quickly to set the line width that you require, up to 6”. The discs can be raised using a handle on the control bar, in order to reposition the machine easily at the end of a line.
This system uses specially designed nozzles that come included with the machine. Each nozzle applies a different amount of paint per minute. If you are marking fresh lines, you can use a nozzle that sprays a dense coat of paint, and if you are overmarking old lines you can choose a nozzle that sprays a lighter coating of paint. This system allows you to use less paint but still offers professional lines.
The large air-filled tyres on this machine make it very stable and simple to operate. The robust frame and large tyres help to keep you line marking along a straight and true line.

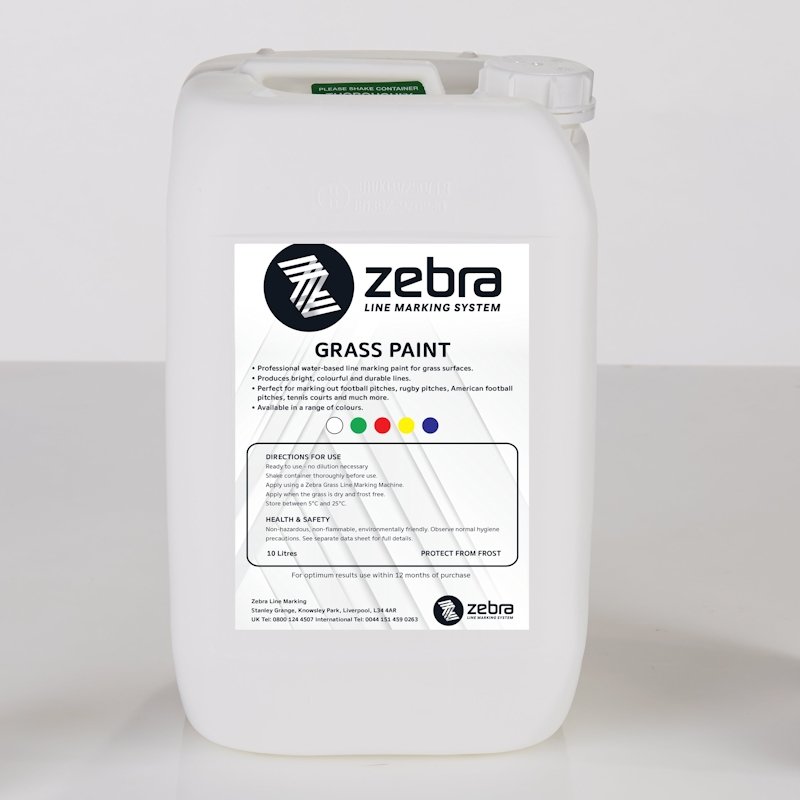

Zebra Grass Line Marking Paint is a high-quality water-based sports pitch line marking paint. It is formulated to produce bright, colourful and durable lines for on grass surfaces. Available in a range of colours, it is perfect for marking out football pitches, rugby pitches, American football pitches, tennis courts and much more.
Zebra Grass Paint is a ready to use line marking paint. It does not need to be diluted or mixed. This reduces waste and mess and makes the job much easier. Simply shake the paint container, place it on the Zebra line marking machine, insert the pump probe into the paint container, prime the pump and you are ready to mark out all kinds of sports pitches.
This line marking bundle deal comes with 40 litres of Zebra Grass Line Marking Paint. A selection of different colours are available - white, yellow, red, blue, orange, green and black. You can select your paint colour option using the dropdown box above and checkout online. If you wish to customise your bundle with a mix of paint colours (eg. 10L white, 10L yellow, 10L blue, 10L red) - simply give our sales team a call and we will be able to customise your order to your requirements.
A choice of accessories are available for this bundle deal. A handheld spray lance can be used for freehand marking, ideal for penalty spots, corner areas, sign marking and more. A hard surface line marking conversion kit is also available, which includes a side arm and square line marking discs. The side arm allows the spray to be mounted on the side of the machine, so you can get right up to kerbs and walls when line marking on hard surfaces. The square discs provide crisp and accurate line edges on hard surfaces. A running track line marking boom can be attached to this machine. It allows for 3 lines to be sprayed alongside each other simultaneously - perfect for line marking running tracks. We also have extra 10L tubs of Flush Thru available. You can add these accessories to your order using the tick boxes above.
Zebra Lux Machine Dimensions:
Height at the lowest setting: 93 cm
Height at the highest setting: 108 cm
Length at the shortest setting: 110 cm
Length at the longest setting: 125 cm
Width: 72 cm
Weight: 32 kg
Warranty: 12 months
Zebra Lux Line Marking Machine
4 x 10L Zebra Grass Line Marking Paint
Round discs for grass & artificial grass line marking
1L Zebra Flush Thru Pump & Nozzle Cleaner
Tub of Zebra spray nozzles
Charger cable
Instructions
Optional Extras:
10L Zebra Flush Thru Pump & Nozzle Cleaner
Zebra Lux Hard Surface Line Marking Conversion Kit
- side arm attachment & square discs which enable the Zebra Lux machine to be used for hard surface line marking
Handheld Spray Lance With Control Valve & Hose
- for freehand marking of numbers, letters, signs & stencils
Running Track Line Marking Boom
- a long boom attachment featuring three spray nozzles. Allows for three lines to be sprayed alongside each other simultaneously. Perfect for marking running tracks.
